CNT-104B

Clear selection
Model
CNT-104B
CNT-104B
3 GHz input option for CNT-90/91 and CNT-1xx
10 GHz CW input option for CNT-100 NOTE: SW upgradable to 15, 20, and 24 GHz
High-stability OCXO, oven oscillator option for CNT-100 series; 10 ppb / month aging
Ultra-high-stability OCXO, oven oscillator option for CNT-100 series: 3 ppb / month aging
GPIB communication interface
SW upgrade from 10 to 15 GHz CW input option for CNT-100. NOTE: requires option 110. Also end user upgradable via license key
SW upgrade from 15 to 20 GHz input option for CNT-100. NOTE: requires option 110 and option 110/15. Also end user upgradable via license key
SW upgrade from 20 to 24 GHz input option for CNT-100. NOTE: requires option 110, and options 110/15 and 110/20. Also end user upgradable via license key
Enable Programmable pulse output 0.5 Hz to 100 MHz (period from 10 ns, pulse width from 4 ns, 2 ns steps). Also end user upgradeable via license key
Unlock TIE and Timestamp measurement function. Also end user upgradable via license key
Frequency Offset Meter SW option for CNT-100. Also end user upgradable via license key.
ADEV graph SW option for CNT-100. Also end user upgradable via license key.
Upgrade resolution from 14 ps rms to 7 ps rms. Also end user upgradable via license key
Upgrade measurement speed to internal memory from 1 MSa/s to 20 MSa/s. Also end user upgradable via license key
19" Rackmount kit for one CNT-9x, CNT-10x, GPS-12x, FDA-301A, or FTR-210R plus one Keysight ½*19" unit, side by side
19" Rackmount kit for two CNT-9x, CNT-10x, GPS-12x, FDA-301A or FTR-210R, side by side
19" Rackmount kit for one CNT-9x, CNT-10x, GPS-12x, FDA-301A, or FTR-210R
Soft Carrying case for CNT-9x, CNT-1xx, GPS-12x or FDA-301A
Heavy duty Transport case for CNT-9x, CNT-1xx, GPS-12x or FDA-301A
Time-base calibration certificate w. Protocol, standard oscillator
Timebase Calibration certificate w. Protocol, TCXO oscillator
Timebase Calibration certificate w. Protocol, OCXO oscillator, for CNT-9x, CNT-1xx, or 6688.
Accredited ISO 17025 time-base Calibration certificate w. protocol, OCXO oscillator, for CNT-9x, CNT-1xx or 6688
SKU: N/A Category:

Overview

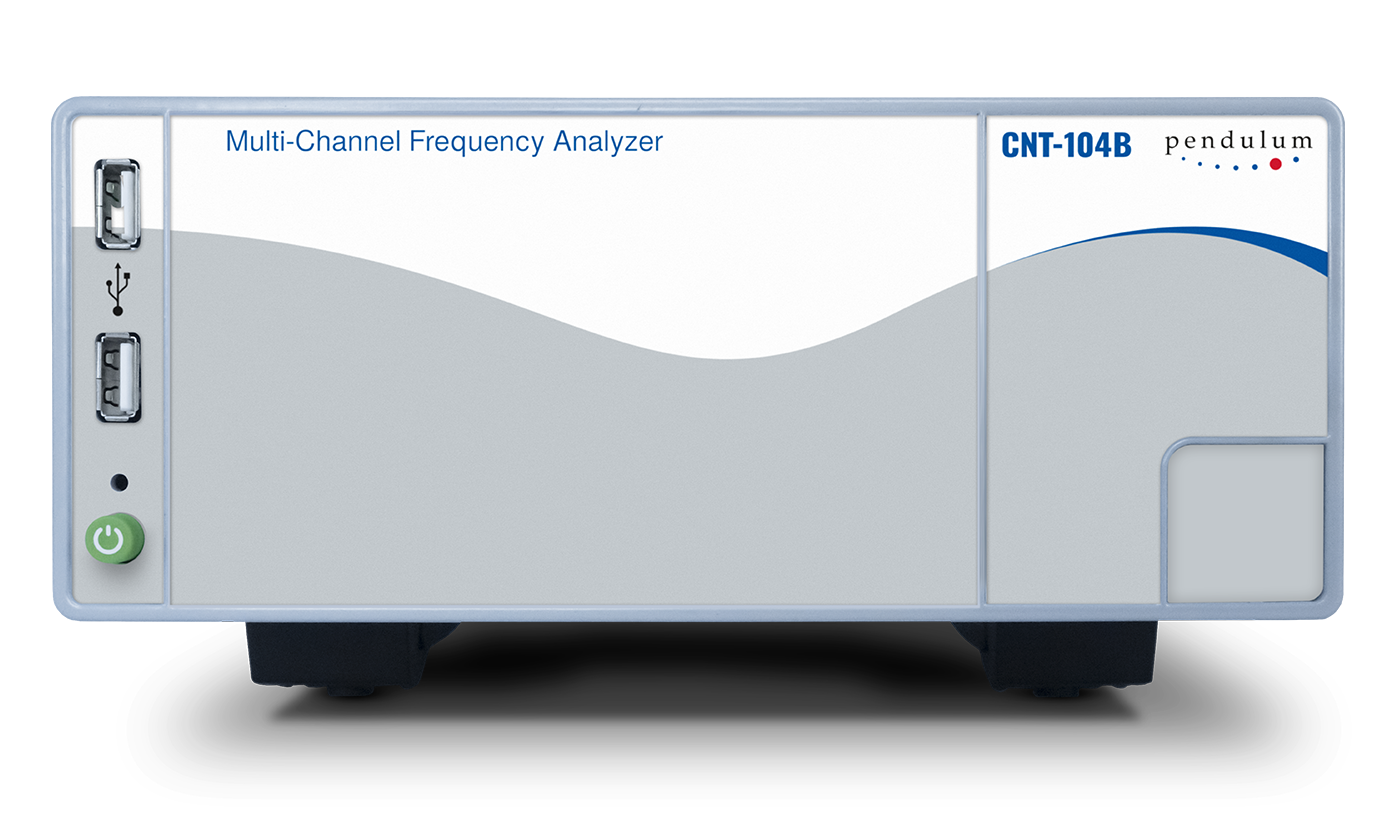

CNT-104B Multi-Channel Frequency Analyzer

The Pendulum CNT-104B is a new affordable model optimized for test systems with blind panel and rear inputs. The multi-channel design enables simultaneous frequency measurements in parallel. One CNT-104B can replace four existing frequency counters in a test system at a lower cost per counter. Packed with the same innovative features and advanced measurement capabilities as the other CNT-100 family, this model has no screen and can be controlled by SCPI commands or by Web user interface on PC, laptop or tablet. In addition to preventing unintended measurement interruption or unauthorized viewing of measurement data, no screen means improved reliability with 10k+ hours longer MTBF. The basic unit has 4 inputs, 14ps resolution and a speed of 1 M values/sec.
